Illuminate your home sauna interior beautifully with our collection of chromotherapy colored lighting system. Sauna lighting from SteamSaunaBath is engineered to withstand the intense thermal conditions within the room. Select from a variety of colored lighting systems or single sauna lights to complete your sauna.

Bathology Spectrum 625

Himalayan Salt Light Wifi RGB Control

Price

MSRP

$159.25

Your Price

$143.33

View Product

Bathology Spectrum 631

Himalayan Salt Light RF RGB Control

Price

MSRP

$202.53

Your Price

$182.28

View Product

Bathology Spectrum 623

Himalayan Salt Light RGB Control Pkg

Price

MSRP

$755.40

Your Price

$679.86

View Product

Bathology Spectrum 510

Color Bathing LED RGB Lighting System, Single Zone

Price

MSRP

$2,195.00

Your Price

$1,975.50

View Product

Bathology Spectrum 511

Sauna Room Color Bathing LED RGB Lighting System, Single Zone

Price

MSRP

$2,195.00

Your Price

$1,975.50

View Product

Bathology Spectrum 510

Color Bathing LED RGB Lighting System, Single Zone

Model

Spectrum 510

Rediscover bathing with the vibrancy of color, by Bathology.

Undo the day with a cascading rinse saturated in a warming red glow, while infusing your steam with the soothing hues of blue.

MSRP

$2,195.00

Your Price

$1,975.50

Back-lit touch interface
Single zone LED RGB color bathing system
6-Light capacity (More than 6 lights requires a second driver, see required products below)
Low-voltage LED lights
RGB White light
Red, Green, Blue & White color pre-sets
Rainbow color sequencing mode, 4-pre-sets
Suitable for use as primary light source
IP68 Waterproof light fixtures
Custom color mode
Dimming function
Luminous Flux (Lm) 88±2.5%
Stainless Steel Material
40-Degree beam angle

Brilliant color lighting
Small-scale, low-profile fixtures
Ceiling, wall or floor mounting
RGB White light
Intuitive user interface
Low-voltage safe operation
Dimmable lighting
Waterproof led lights
Versatile and customizable color bathing system
Single zone lighting control

DMX Driver
Touch interface
Power supply, 24V DC
Power supply connector, 50’
One Cat6 cable, DMX
One Cat6 cable, light, 25’
One Light Output Box
One Brilliance 410 light fixture
Installation and operation manual

Swipe horizontally to reveal full table content.


Model	Spectrum 510

Swipe horizontally to reveal full table content.

DMX Driver
Operating Voltage	24VDC
Power Consumption	4.2 - 12.6 watts per channel
Output Current	350mA
Light Capacity	6 Lights (per driver)
Dimensions	7”L x 1.81”W x .82”H
IN Cable	CAT6
Listings	CE / FCC / CRUus

Swipe horizontally to reveal full table content.

Power Supply
Operating Voltage	120V AC
Output Voltage	24V DC
Power Consumption	90W
Nominal Amperage	1.3 Amps
Dimensions	2”W x 7”L x 1-1/4”H
Connector	12V - 50’ Long

Swipe horizontally to reveal full table content.

Touch Interface
Trim	Steel, Polished Chrome Finish
Housing	Aluminum housing, glass panel
Dimensions	3-3/16”W x 4-15/16”H x 11/16”D
Power Consumption	1.1W

Swipe horizontally to reveal full table content.

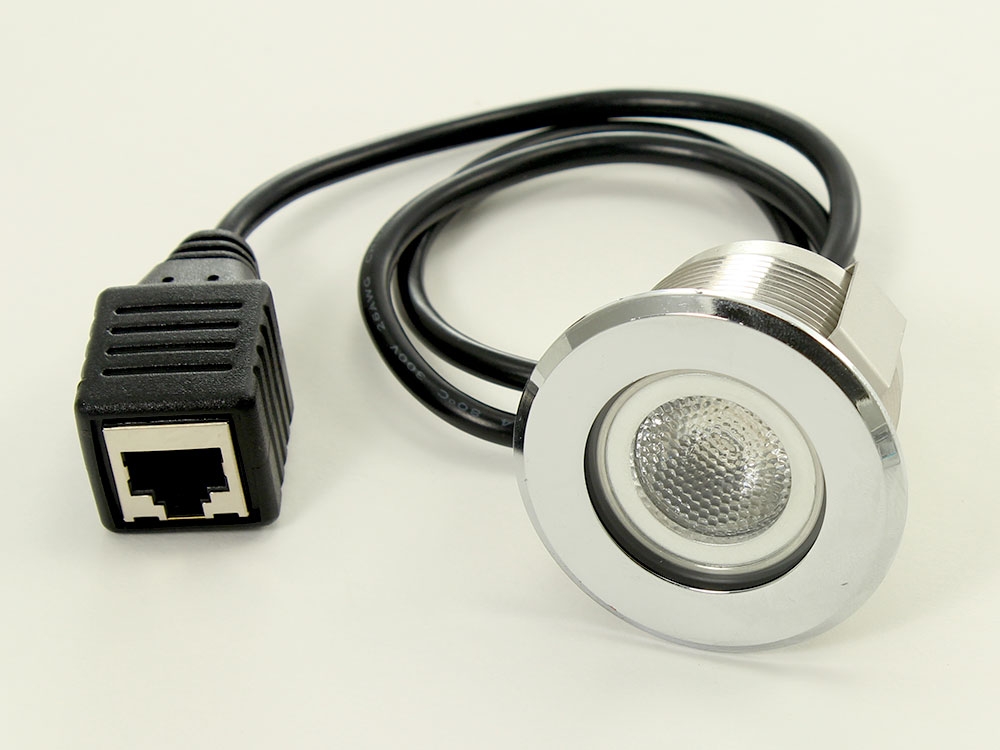

Brilliance Fixture
Type	LED RGB
Operating Voltage	12V DC
Maximum Input Current	350mA
LED	1 x 3 Watt RGB in One
Beam Angle	35 Degree Clear / 120 Degree Frosted
Lumen	88 Lumens max per fixture
Trim Finish	Polished Stainless Steel
Housing Composition	Stainless Steel
Lens	Clear or Frosted, 1-1/4” Diameter
Lens Composition	Optical Grade PMMA
"Rough-In" Cut-Out	1-5/8”
Trim Dimensions	2" Diameter, 1/8” Profile
Body Dimensions	1-5/8” Diameter x 2-1/4” Deep
Rating	IP68
Certifications	CE / RoHS / WEEE
Fastener	Steel Spring Clips

Installation and Operation Manual

Document

Spectrum-510_03-24.pdf1.08 MB

Bathology Spectrum 511

Sauna Room Color Bathing LED RGB Lighting System, Single Zone

Model

Spectrum 511

Set the mood of your sauna experience with chromotherapy with infinite color choices. Rediscover bathing with the vibrant color, by Bathology.

MSRP

$2,195.00

Your Price

$1,975.50

Back-lit touch interface
Single zone LED RGB color bathing system
6-Light capacity (More than 6 lights requires a second driver, see required products below)
Low-voltage LED lights
RGB White light
Red, Green, Blue & White color pre-sets
Rainbow color sequencing mode, 4-pre-sets
Suitable for use as primary light source
IP68 Waterproof light fixtures
Custom color mode
Dimming function
Luminous Flux (Lm) 88±2.5%
Aluminum Material
120-degree beam angle

Brilliant color lighting
Small-scale, low-profile fixtures
Ceiling, wall or floor mounting
RGB White light
Intuitive user interface
Low-voltage safe operation
Dimmable lighting
Waterproof led lights
Versatile and customizable color bathing system
Single zone lighting control

DMX Driver
Touch interface
Power supply, 24V DC
Power supply connector, 50’
One Cat6 cable, DMX
One Cat6 cable, light, 25’
One Light Output Box
One Brilliance 450 light fixture
Installation and operation manual

Swipe horizontally to reveal full table content.

Model	Spectrum 511

Swipe horizontally to reveal full table content.

DMX Driver
Operating Voltage	24VDC
Power Consumption	4.2 - 12.6 watts per channel
Output Current	350mA
Light Capacity	6 Lights (per driver)
Dimensions	7”L x 1.81”W x .82”H
IN Cable	3-Pin, 24Gauge, 50'
Listing	CE / FCC / CRUus

Swipe horizontally to reveal full table content.

Power Supply
Operating Voltage	120V AC
Output Voltage	24V DC
Power Consumption	90W
Nominal Amperage	1.3 Amps
Dimensions	2”W x 7”L x 1-1/4”H
Connector	12V - 50’ Long

Swipe horizontally to reveal full table content.

Touch Interface
Trim	Steel, Polished Chrome Finish
Housing	Polycarbonate, White
Dimensions	3-3/16”W x 4-15/16”H x 11/16”D
Power Consumption	1.1W

Swipe horizontally to reveal full table content.

Brilliance Fixture
Type	LED RGB
Operating Voltage	12V DC
Maximum Input Current	350mA
LED	1 x 3 Watt RGB in One
Beam Angle	120 Degree
Lumen	88 Lumens max per fixture
Trim Finish	Polished Stainless Steel
Housing Composition	First Grade Aluminum
Lens	Frosted, 1-1/4” Diameter
Lens Composition	Optical Grade PMMA
Rough-in Cutout	1-5/8”
Trim Dimension	2" Diameter, 1/8” Profile
Body Dimensions	1-5/8” Diameter x 2-1/4” Deep
Rating	IP68
Certifications	CE / RoHS / WEEE
Fastener	Steel Spring Clips

Installation and Operation Manual

Document

Spectrum-511_03-24.pdf1.12 MB

Bathology Spectrum 623

Himalayan Salt Light RGB Control Pkg

Model

Spectrum 623

SKU

SPECTRUM623

State-of-the-art wall-mounted controller with a glass face allows infinite adjustment of color and brightness. Experience the interplay of color as the LED lighting illuminates the room while interacting with the natural hues within the Himalayan salt creating a personalized light sculpture.

MSRP

$755.40

Your Price

$679.86

Power button
Touch Toggle
Color Modes
Pre-programmed Scene modes

Touch Interface Control
DMX Decoder
Power Supply
DMX Cable

Swipe horizontally to reveal full table content.

Model	Spectrum 623

Swipe horizontally to reveal full table content.

Touch Interface Control
Operating Voltage	24VDC
Load	2Amp per channel, 6Amp Total

Swipe horizontally to reveal full table content.

DMX Decoder
Operating Voltage	24VDC
Power Consumption	192W
Amperage	4 Channels, 8Amp

Swipe horizontally to reveal full table content.

Power Supply
Operating Voltage	120VAC
Output Voltage	24VDC
Power Consumption	120W
Amperage	1.4Amp / 120VAC

Installation and Operation Manual

Document

Spectrum620-C & 626-C.pdf3.25 MB

Bathology Spectrum 625

Himalayan Salt Light Wifi RGB Control

Model

Spectrum 625

SKU

SPECTRUM625

Control your color salt light system from your smart phone with this control package. The Smart Life Smart Living App is available on IOS/ Android.

MSRP

$159.25

Your Price

$143.33

RGB color wheel
Power Button
Brightness Slider

WIFI Receiver/Bracket
Light Extension Cable
Power Supply
Wire nuts

Swipe horizontally to reveal full table content.

Model	Spectrum 625

Swipe horizontally to reveal full table content.

WIFI Control
Operating Voltage	24VDC
Power Consumption	144W
Amperage	3 Channels, 5Amp
WIFI	2.4GHz

Swipe horizontally to reveal full table content.

Power Supply
Operating Voltage	120VAc
Output Voltage	24VDC
Power Consumption	120W
Amperage	1.4Amp / 120VAC

Installation and Operation Manual

Document

Spectrum620-C & 626-C.pdf3.25 MB

Bathology Spectrum 631

Himalayan Salt Light RF RGB Control

Model

Spectrum 631

SKU

SPECTRUM631

Salt Light RF RGB Control

Control your color salt light system with this RF remote. Remote can be removed from it's wall mount and carried around.

MSRP

$202.53

Your Price

$182.28

Power Button
Color Wheel
Brightness Slider

Remote Control
RF Receiver
Power Supply
Lighting extension cable

Swipe horizontally to reveal full table content.

Model	Spectrum 631

Swipe horizontally to reveal full table content.

RF Remote
Operating Voltage	3VDC (AAAx2)
Signal	RF 2.4GHz
Signal Distance	98'

Swipe horizontally to reveal full table content.

RF Receiver
Operating Voltage	24VDC
Power Consumption	96W
Amperage	4 Channels, 4Amps

Swipe horizontally to reveal full table content.

Power Supply
Operating Voltage	120VAC
Output Voltage	24VDC
Power Consumption	160W
Amperage	1.85Amp / 120VAC

Installation and Operation Manual

Document

Bathology-Spectrum620-C-626-C-Color-Light-Salt-Panel-IOM.pdf3.25 MB
