Mr.Steam MS90E
MS-E Series 5kW Steam Shower Generator
The Mr. Steam MS90E 5kW home steam shower generator is engineered for residential steam rooms up to 71 adjusted cubic feet (ACF).
Required control package sold separately.
- For steam baths sized up to 71 adjusted cubic feet
- Available in 240V and 208V operation
- Stainless Steel tank
- Industrial-grade, serviceable heating element
- MiniDIN control connections
- Available Auto Drain automatic draining system
- Durable electronic components
- Electronic water-level control system
- Low-voltage safety control circuits
- Solid-state circuitry
- Diagnostic LED Displays
- Full port drain valve
- ASME safety valve
- UL/CUL/NOM/CE Listed
- 5.0KW Steam bath generator, 14-1/2"L x 6-3/4"W x 14-3/4"H
- Installation and operation manual
- Limited warranty
| Model | MS 90E |
|---|---|
| Minimum Adjusted Cubic Feet | 1 |
| Maximum Adjusted Cubic Feet | 71 |
| Shipping Weight | 30 lbs |
| Kilowatt Rating | 5.0 KW |
| Electrical Specifications | Electrical Chart (refer to pdf) |
| Water Supply Connection | 3/8" NPT |
| Generator Steam Line Connection | 1/2" NPT |
| Steam Head Connection | 1/2" NPT |
| Drain Connection | 1/2" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 1" |
| Generator Control Connection | 8-Pin Mini-DIN Connector |
| Generator Control Cable | 30', 8 Conductor, 24 AWG, Shielded Cable |
| Width | 14-1/2" |
| Depth | 6-3/4" |
| Height | 14-3/4" |
The digital iTempo 60-minute steam shower control from Mr.Steam provides programmable temperature control. The iTempo features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module.
Comes with matching designer finish aroma steam head.
The digital iTempoPlus control provides programmable temperature control, time duration, personalized temperature settings, on/off, and control of aroma and lighting. The iTempoPlus features a soft touch key pad and easy-to-read digital readout display and is compatible with the SteamLinx mobile control module.
Comes with matching designer finish aroma steam head.
No cables, no wires, and no hassle— the Mr. Steam AIRT control package is an easy-to-use and convenient way to control the steam shower.
The Mr.Steam Basic Butler Steam Shower Package (BBUTLER) is compatible with the MS and Super Series generators and includes an iTempo steam shower control with matching finish steam head, autoflush automatic drain system, and condensation drain pan.
The Basic Butler Linear (BBUTLERL) Steam Shower Operating Package, for MS and SUPER Series steam shower generators, contains an MS iTempo operating control with matching-finish linear steam head, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The Butler Steam Shower Operating Package from Mr.Steam for MS-E and SUPER-E Series generators contains your choice of round or square iTempo PLUS operating control with a matching-finish steam head, remote-start SteamLinx app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The Butler Steam Shower Operating Package (BTLRL1) for MS and SUPER Series generators contains an MS iTempo operating control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The ABUTLER1 Steam Shower Operating Package for MS/SUPER Series generators contains an AirTempo operating control with matching finish steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
The AirButler Steam Shower Operating Control Package for MS and SUPER Series steam shower generators contains an AirTempo operating control with matching-finish linear steam head, remote-start app, automatic drain valve, and drain pan for an enhanced the steam bathing experience.
Award-winning and truly innovative, this Linear Steam Head for MS90–MSSUPER3 generators is the quietest of its kind. Installed flush with the wall, this Steam Head can be installed so only a slim opening remains visible.

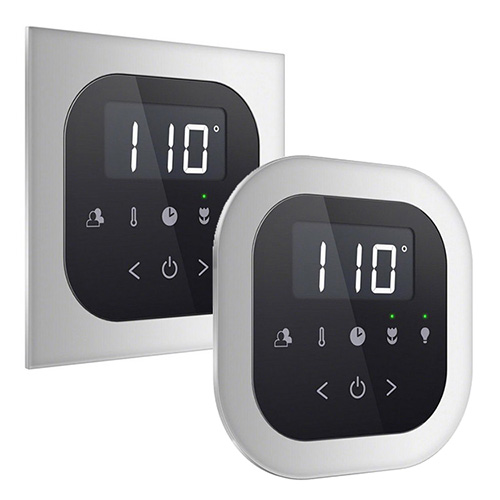

The AirTempo Control can be installed flush to the wall of your shower or steam room using the AirTempo® Flush Mount Kit, which consists of a sleek bezel into which the control snugly fits. The AirTempo® Flush Mount kit is a great solution if you’re covering a hole left behind by your old steam shower control.
Available in Black or White fascia with Polished Chrome trim or five designer finishes to match any project: Brushed Bronze, Brushed Nickel, Polished Brass, Polished Nickel, Satin Brass, and Oil Rubbed Bronze.
Must order AirTempo Control separately.

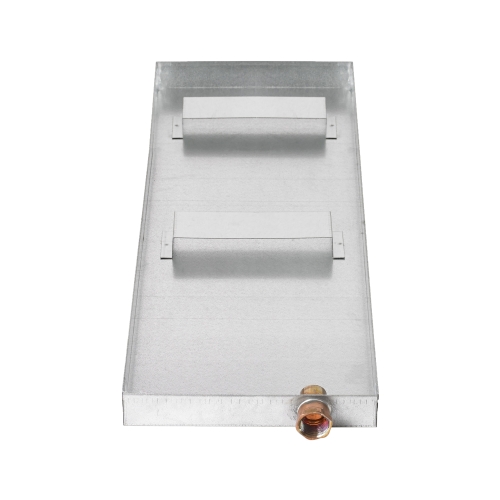

Designed for the unlikely event of a slow water leak, the Mr.Steam Drain Pan installed beneath the MS/SUPER steam generator will aid in the trapping and redirecting of this water to an acceptable and predetermined area.
Mr.Steam Temperature Room Sensor with 30 ft Cable is designed for Tempo, eTempo, iTempo, and AirTempo Controls. Note that you cannot use a 30 ft plus a 60 ft cable together.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
External Probe, iSteam
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
No need for frequent trips searching for those special plumbing fittings, Steam Sauna Living has carefully selected and packaged the brass and copper couplers, nipples, valves and unions for a simple, maintainable and serviceable steam generator installation. Use of these choice fittings will allow you to maximize your in-home, factory and labor warranties!
Mounting over the MS 103937 or MS 104040 SteamHead and designed for use when acrylic or other non-heat resistant construction materials are used for steam room enclosure construction, the Mr.Steam Acrylic Shield will aid in diffusing the steamhead heat transfer and redirect the steam-flow. Recommended for steam rooms with minimal floor space, ceiling heights over 8' high and natural stone construction.
NOTE: To preserve the originality, operation and safety of replacement parts, this product is not returnable.
The MrSteam ChromaSteam-72 system suffuses the steam shower with a spectrum of color from airy blue to warm red, allowing you to select the color and modes directly from the AirTempo® or iTempoPlus® Control keypad.
The Mr Steam Audio@Home System is a stand-alone system and does not operate with any of their control packages. It is a Bluetooth device that will work with any Bluetooth device such as a Smartphone or Tablet.
Teak wood, beautifully finished and sealed.
The Mr. Steam Steamlinx System provides wireless control of the steam room from smart phone or mobile device.
Requires use of an iSteam3, AirTempo, iTempoPlus, or iTempo operating control.

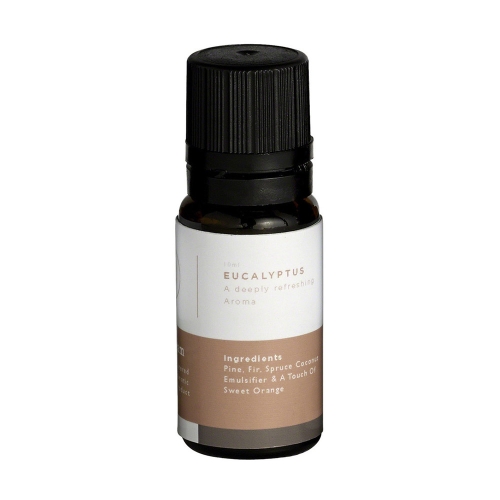

Mr.Steam has carefully created these essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created these Chakra blend essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created this pack of essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Mr.Steam has carefully created these Chakra blend essential aroma oils that combine with luxurious steam presenting invigorating scents all throughout your steam shower or steam bath enclosure.
Choose from five essences for whatever mood you’re seeking. Each fragrance comes in a long-lasting 33 oz bottle. Available in Eucalyptus, Lavender, Evergreen, Energizing Mint and Breathe, AromaSteam Oils will leave you rested, rejuvenated and relaxed.
Installed out-of-sight and near your steam bath generator, the AromaSteam electronic oil delivery system will deliver your favorite aroma oil directly into the steam line.

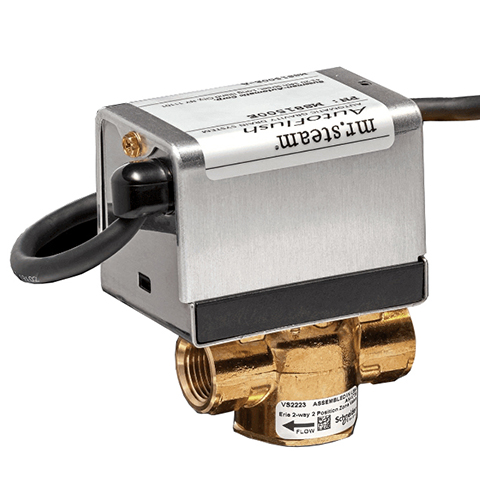

Your steam generator is the most important component of your steam shower. Protect your investment with AutoFlush®. AutoFlush® is a exclusive product. It's an automatic self-cleaning system that promotes a long, healthy life for steam generators by automatically flushing the generator’s sediment two hours after every steambath. We automate everything in the background, so no work is needed after every steam shower session. AutoFlush® assures that you get clean steam every time.
