ThermaSol PROIII-575
PRO Series II Ultimate Steam Shower Generator, 15kW w/Fast Start, PowerFlush and Smart Steam
Featuring Constant Steam, Split Tank, Fast Start, and PowerFlush exclusive technologies, the ThermaSol PROIII-575 is a 15kW home steam shower generator designed for steam baths with dimensions 396 to 575 adjusted cubic feet (ACF). ThermaSol's PRO Series Steam Shower Generators combine the latest technology with ThermaSol durability, performance, and efficiency to ensure a consistent steam shower experience every time. A welcome addition for any bathing enthusiast, The PROIII Series raises the bar with an advanced cleaning system, stainless steel drain pan and is the only model to offer the ultimate Smart Steam (patented) technology, eliminating temperature fluctuations.
Required control package sold separately
- Constant steam flow
- Constant steam rate
- No steam lag
- No steam burst
- Smart Steam Technology (patented) - eliminates temperature fluctuations
- FastStart Technology (exclusive) - steam in seconds, not minutes
- PowerFlush Technology (exclusive) - pressurized inner tank system to remove sediment
- Works with HydroVive and Serenity systems
- Two-way digital CAN-bus Technology (exclusive)
- Split Tank longevity through design
- Includes stainless steel drain pan
- Pre-plumbed safety relief valve
- 1/2" union to connect to steam line
- Braided stainless steel water connector
- 240V/1PH operation
- For steam rooms 396 to 575 adj. cu. ft.
- Superior heating elements-Incoloy low watt density
- Stainless Steel construction
- Designed, engineered, and crafted in the U.S.A
- Dimensions: 18" L x 23"W x 14" H
- Lifetime Warranty
- 15kW Steam generator
- Stainless steel drain pan
- 3/8" braided stainless steel hose & fitting
- In-line water screen kit
- Pre-plumbed safety relief valve
- Steamhead housing and cable kit
- 50' CAN-bus cable for the controller
- Installation instructions
- Static cling warning label
- Warranty
| Model | PROIII-575 |
|---|---|
| Kilowatt Rating | 15 kW |
| Maximum Cubic Feet | 575 ACF |
| Amperage | 69 |
| Heater Weight | 48 lbs |
| Water Inlet | 3/8" Compression |
| Steam Outlet | 1/2" NPT |
| Drain Pan | 3/4" NPT |
| Safety Valve | Pre-Plumbed |
| Electrical Connection | Hardwired |
| Width | 18" |
| Depth | 23" |
| Height | 14" |
Designed for use inside the steam shower, the ThermaSol ThermaTouch 10" LCD in-shower touchscreen controller manages all aspects of the smart shower and steam generation, including steam duration and temperature. You can access a variety of popular apps while setting the steam, lights and music to your exact preferences.
See Technical tab for Finish availability
The ThermaSol TT7-SVRD control kit was designed for installation inside the steam shower, the waterproof ThermaSol ThermaTouch 7” LCD control kit provides convenience and complete control of the steam bathing experience.
Includes Control and Steamhead with a variety of styles and finishes.
See Technical tab for Finish availability
The ThermaSol SignaTouch 5” LCD square control kit allows you to control steam room functionality while bathing. The touchscreen allows a simplified way to control your steam shower experience from temperature to lights and everything in between.
See Technical tab for Finish availability
Designed for use with the ThermaSol Pro Series or AF Series of steam generators, the ThermaSol Signature Series round control kit is an easy and convenient way to control steam room functionality from inside the shower.
Steam Generator Sold Separately
See Technical tab for Finish availability

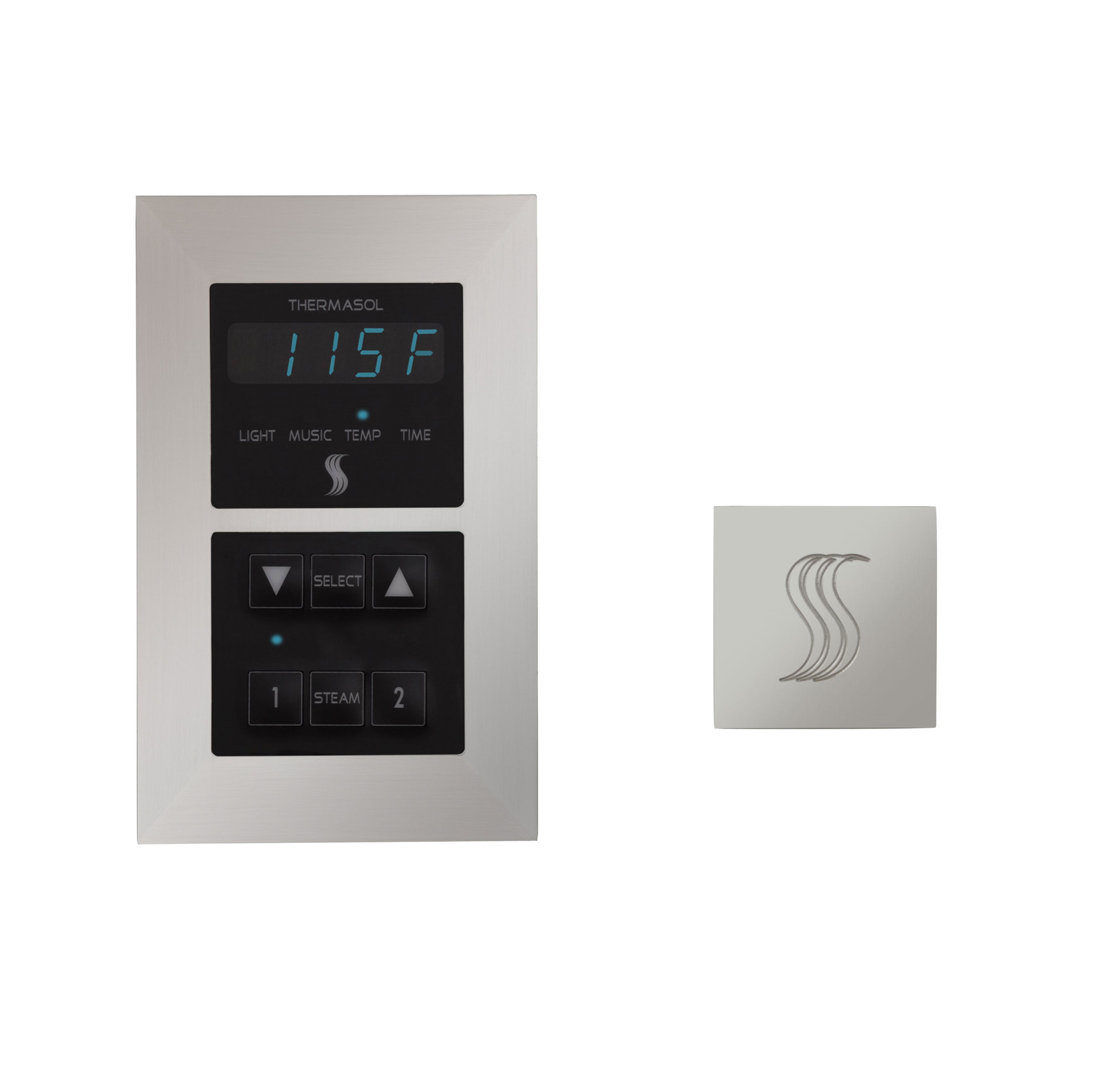

Designed for use with the ThermaSol Pro Series or AF Series of steam generators, the ThermaSol Signature Series control kit allows users to control time and temperature settings, on/off and pause modes, lighting, and music from inside the steam shower.
Steam Generator Sold Separately
See Technical tab for Finish availability
The ThermaSol MicroTouch Steam Shower Control kit offers control of steam room functionality from inside the steam shower. This package includes MicroTouch Control and SteamVection Steamhead. Available in 15 designer finishes.
Steam Generator Sold Separately
See Technical tab for Finish availability
No need for frequent trips searching for those special plumbing fittings, Steam Sauna Living has carefully selected and packaged the brass and copper couplers, nipples, valves and unions for a simple, maintainable and serviceable steam generator installation. Use of these choice fittings will allow you to maximize your in-home, factory and labor warranties!
Note: Also compatible with PRO III series generators
