Bathology Spectrum 230
In-Shower Light Switch
Bathology puts shower light control where it’s needed most… inside the shower!
No more bathing with insufficient light…. the Bathology Spectrum 230 In-Shower Light Switch allows for on, off, and dimming control – all from the warming sprays of your shower.
- In-shower use
- Low-voltage operation (5VDC)
- 20-Minute off-delay
- Soft-Touch keypad, Polished Chrome or Brushed Nickel finishes
- Water-safe materials
- Standard fixture dimming capability
- In-shower convenience
- Complete lighting-level control
- Safe operation
- 20-Minute internal electronic timer
- Flush-mounted, low-profile design
- Soft-Touch Light Switch, White, Polished Chrome or Brushed Nickel trim
- Power supply module
- Coupler
- 25’ Soft-Touch Switch cable
- (2) Plastic wall anchors
- (2) Stainless steel screws, #6
- Nema male plug
- Strain relief bushing
- RTV silicone sealant, .5 oz tube
- Installation and operation manual
| Model | Spectrum 230 |
|---|---|
| Shipping Weight | 9 lbs |
| Light Switch | |
|---|---|
| Type | Flush-Mounted |
| Dimming Rage | 50% |
| Voltage | 5V DC |
| Diameter | 2-1/32" |
| Trim Depth | 3/16" |
| Trim Finish | Polished Chrome or Brushed Nickel |
| Body Diameter | 1-17/23" |
| Body Depth | 1-5/16" |
| "Rough-In" Cut-Out | 1-1/2"Diameter |
| Time Circuit | 20-Minutes Off Delay |
| Wall Material Thickness | 2-1/2" |
| Power Supply | |
|---|---|
| Operating Voltage | 120V AC |
| Nominal Amperage | 15 AMPS |
| Length | 7-7/8" |
| Width | 7-1/2" |
| Height | 3-1/4" |
| Testing | CSA, Type 2 |
In-Shower lighting elegance engineered by Bathology! Recessed down-light that offers elegant illumination and blends with any décor, the Spectrum 310's all-glass trim and small scale appearance makes it the popular choice of architects, interior designers, and bathers. Engineered for steam showers.
THIS PRODUCT IS NO LONGER AVAILABLE. PLEASE SEE OUR INVENTORY OF LIGHTS.
Lighting elegance engineered by Bathology!

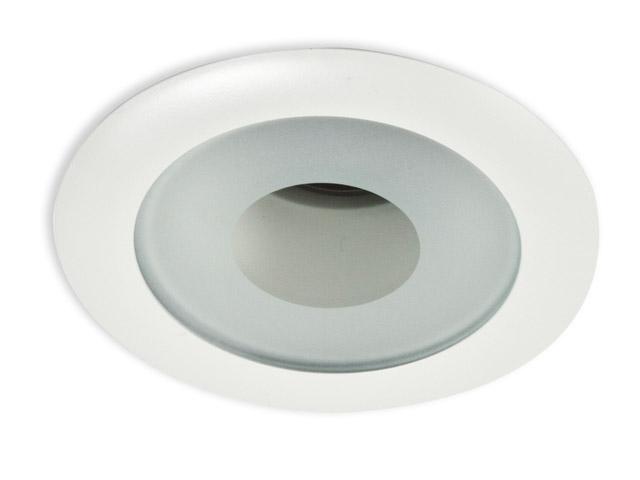

Designed for bathers in search of a recessed downlight that nearly disappears into their ceiling, the Spectrum 320’s slender profile, small scale appearance and frosted glass lens makes it the popular choice of architects, interior designers, and bathers for in-shower lighting.
Steam shower lighting elegance engineered by Bathology!
Designed for bathers in search of an LED recessed in-shower downlight that almost disappears into the ceiling, the Spectrum 321 steam shower light's slender profile, small scale appearance, and frosted glass lens makes it the popular choice of architects, interior designers, and bathers.
